Instructions for installing SmartShell on gaming stations with a diskless solution.

  1. Boot the master boot image ﴾gold boot image﴿, install the Shell on it and make sure that after rebooting, there is a connection with the server.
    The Online status in the Shell and the Turned on status in the Admin panel indicate a successful connection with the server.

    Shell is online_newshell.png


  2. Deactivate the shell on this PC, for this:
    • Press CTRL+ALT+P combination;
    • Enter the high access password (pasw0rd by default);
    • Click on Shell deactivation icon (red Windows sign).

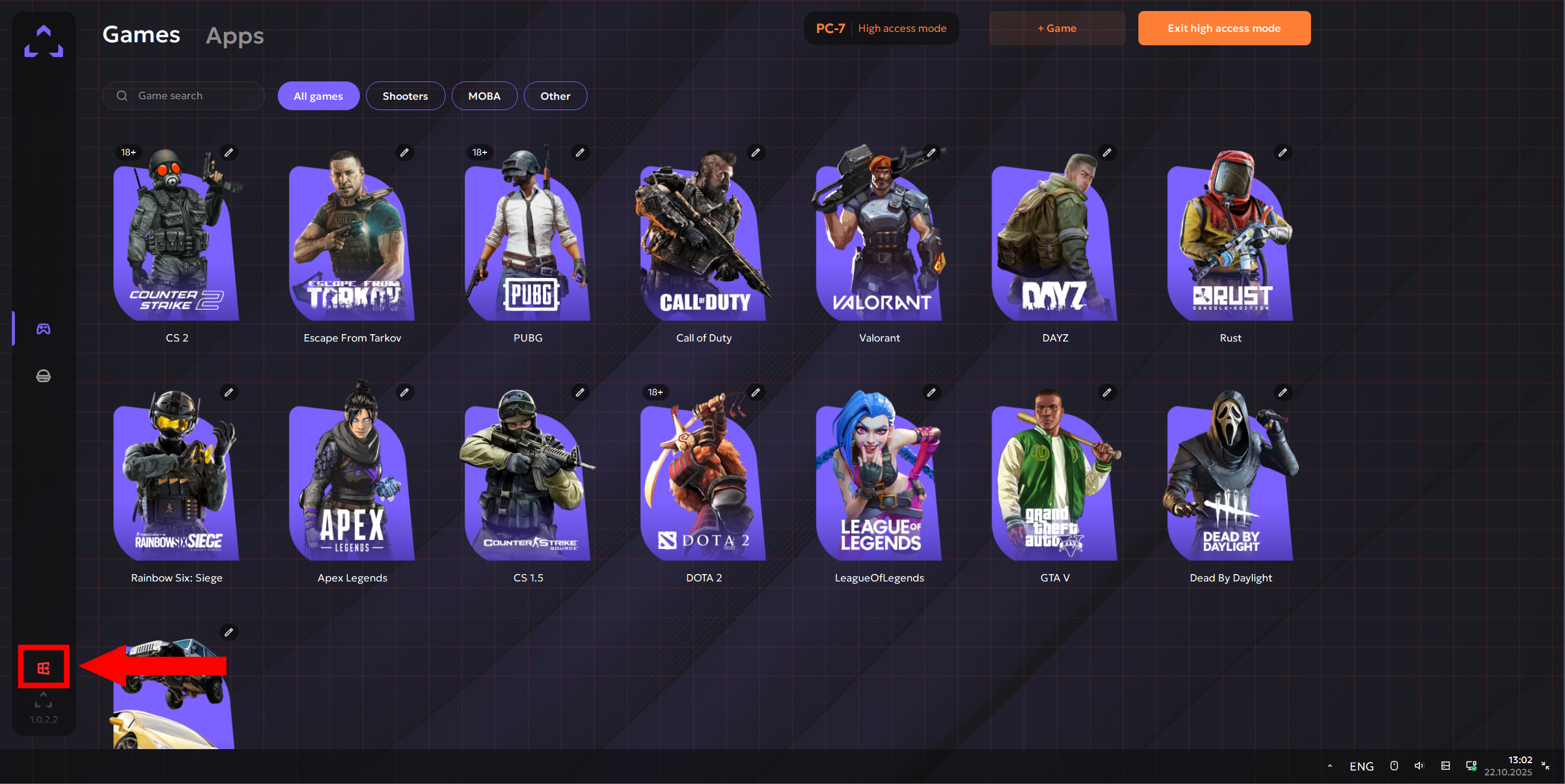

      Disable shell_newshell.png

  3. Save the master-image.
  4. Boot this image on the next gaming station.
  5. Install the Shell via the installer.
  6. Run the Shell, make sure that connection with the server is established, the number you specified is assigned and the operation status is Online.

    Shell interface_newshell.png

  7. If there are no problems, repeat the action for each PC.
  8. Activate the shell in the Master boot image, then save it.

If you have any questions during the installation – contact us in the technical support chat.
